Advanced features
Data in the 2D RNA topology viewer
Once the secondary structure is fetched from the API (or generated by R2DT) and mapped to the MSA, users can
 |
 |
 |
|---|---|---|
| Default | Path option selected | Circles with colors selected |

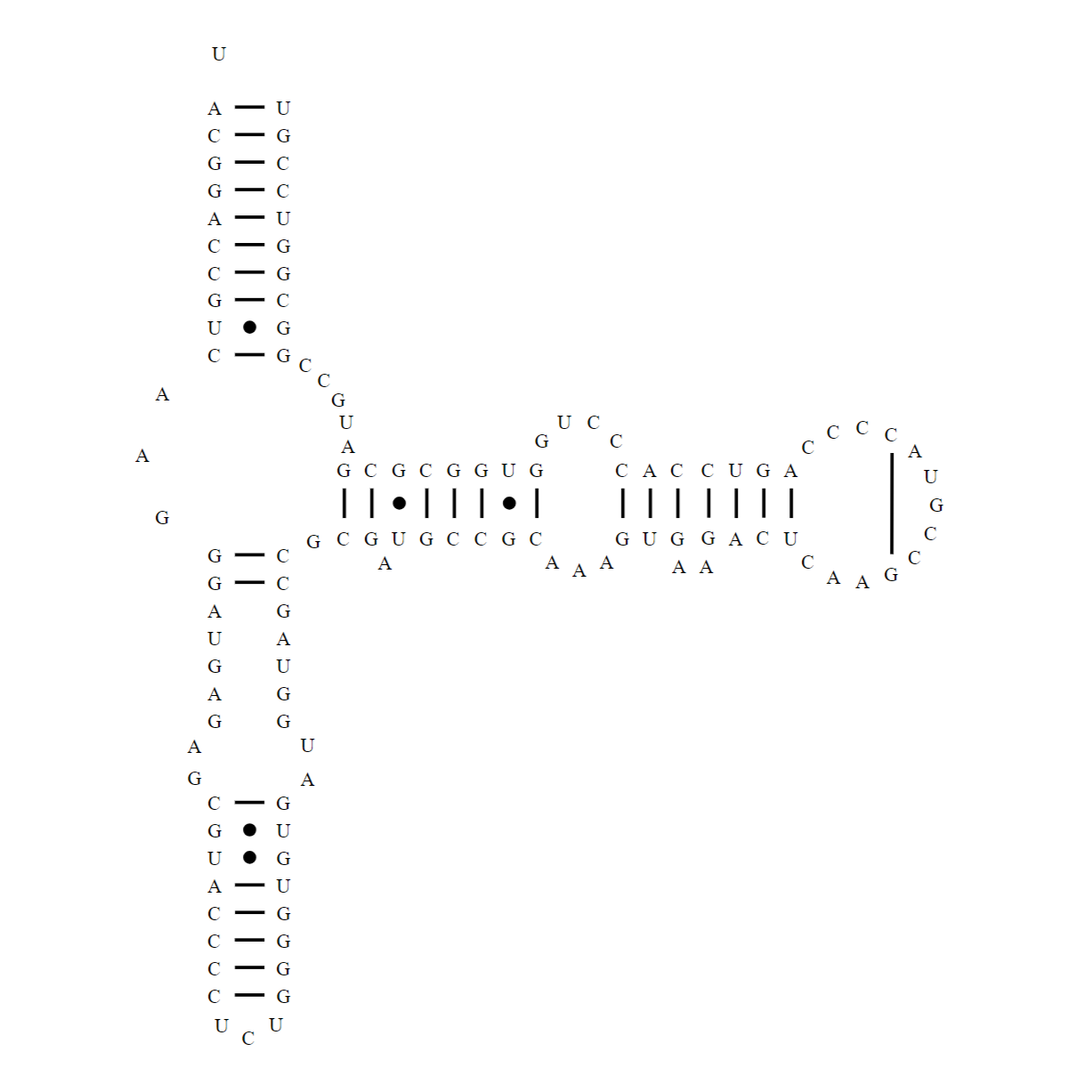

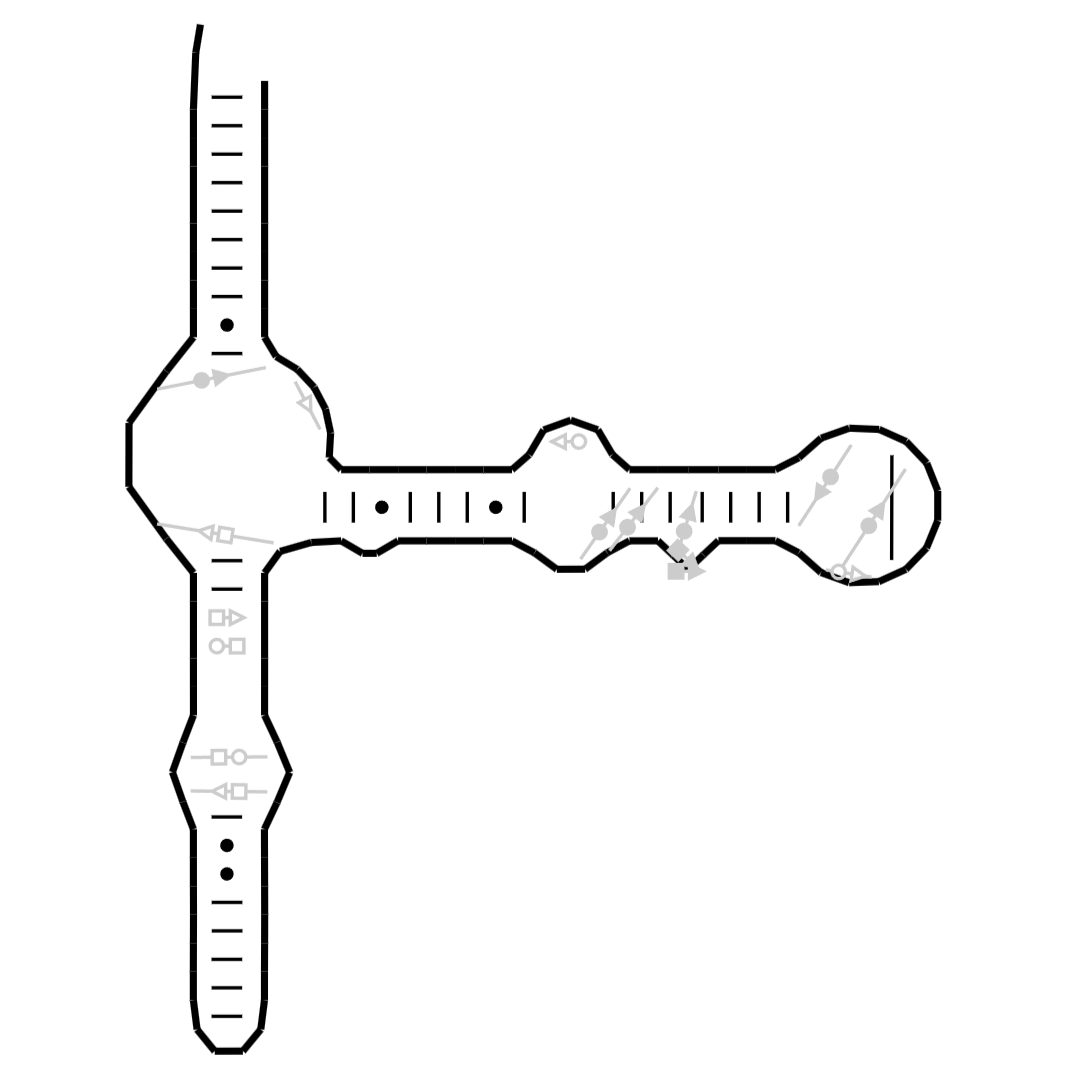

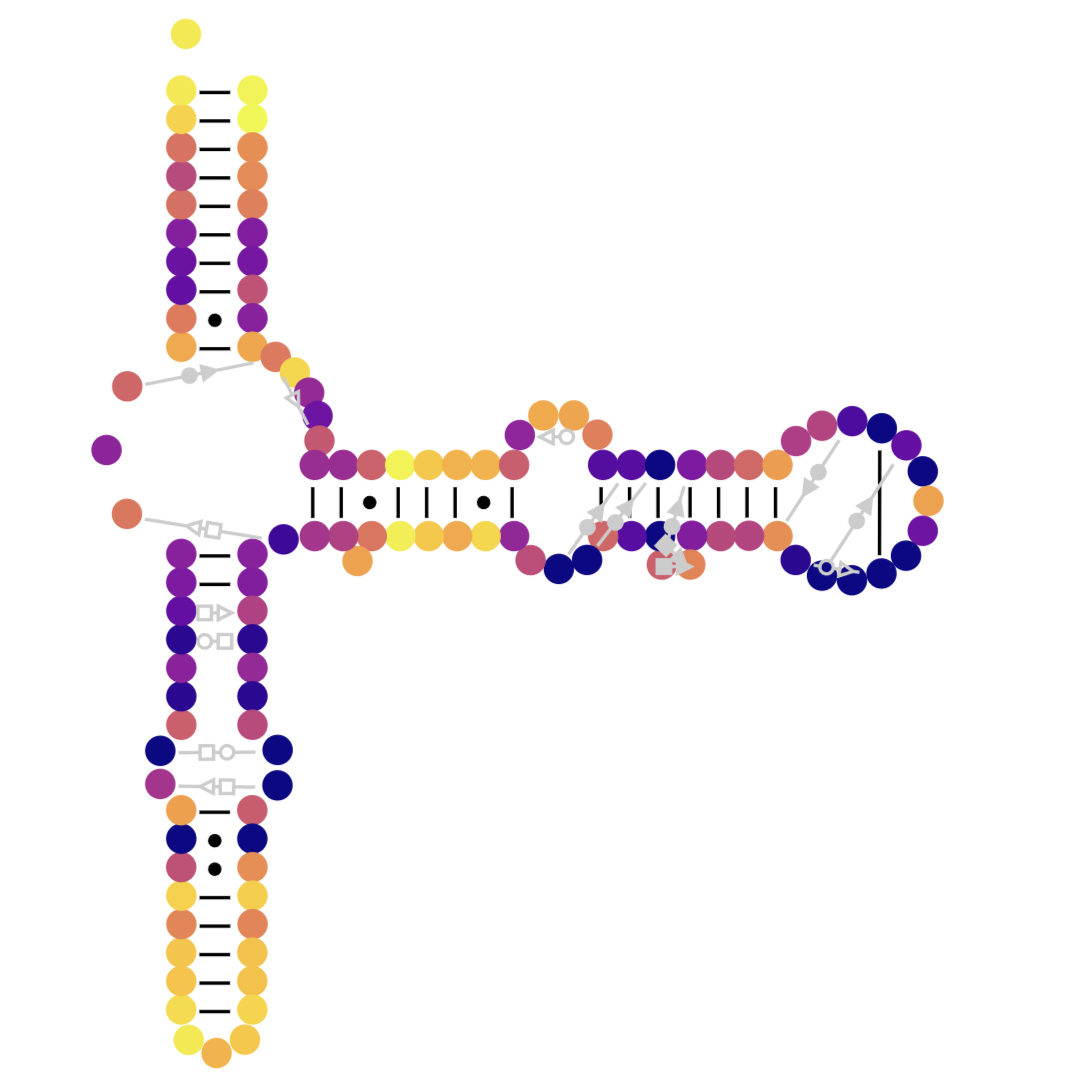

- display various representations of the 2D structure (nucleotides, contour lines, and circles).
- visualize various types of base-pairs according to the Leontis-Westhof notation (all or nested only).
- map precomputed properties (e.g. Shannon entropy, TwinCons or Associated Data (helices, expansion segments or phases)) onto the secondary structure (the selected data will be synchronously mapped onto 3D representation as well).
Resulting secondary structure representations (along with the mapped data) can be saved as SVG files.
Data in the Mol* viewer
Once 3D structures are fetched from PDBe or uploaded, users can

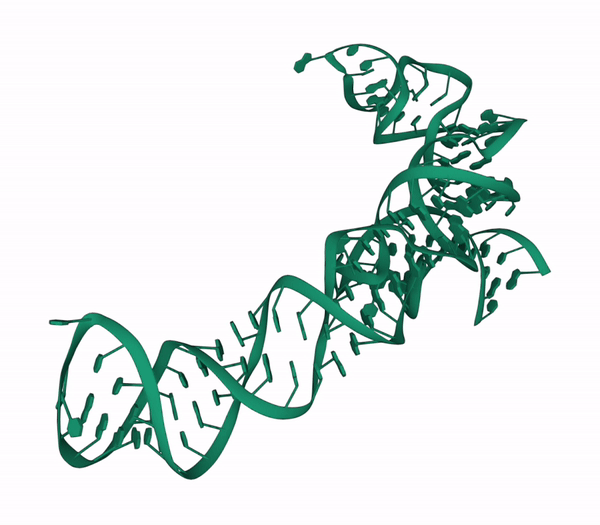

- display an interactive cartoon representation of the 3D structure, either alone or with ribosomal context
- visualize RNA chains along with their protein contacts
- map precomputed properties (e.g. Shannon entropy or TwinCons) onto the 3D structure (synchronized with 2D mapping)
- utilize other basic functions of PDBe Mol* described in the wiki: https://github.com/molstar/pdbe-molstar/wiki
3D structure models can be saved as PNG images in multiple resolutions.
Synchronization of navigation between the panels
Navigation between all panels is synchronized. Hovering over an alignment position highlights the corresponding residue in the 2D RNA topology and MolStar viewers. Reversely, hovering over a residue in the same viewers highlights the alignment and the recipical structural view.
Show protein contacts
 |
 |
|---|---|
| 2D RNA topology Viewer | MolStar Viewer |

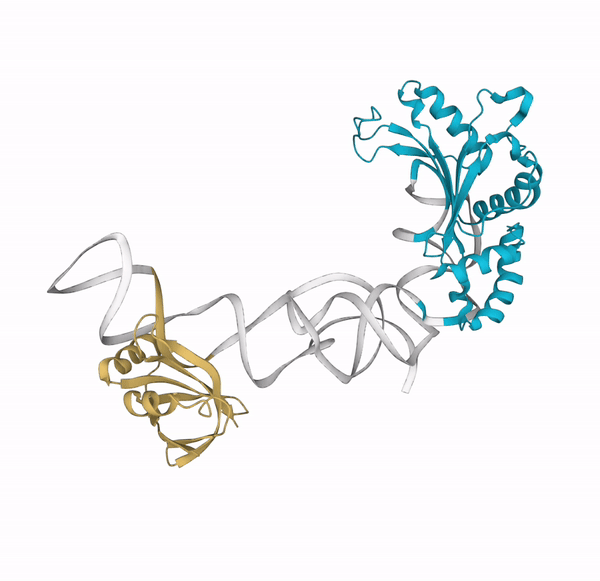

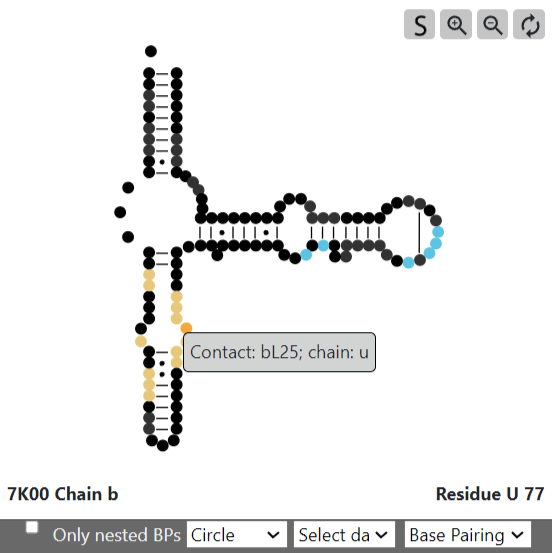

RiboVision 2 offers visualization of rProtein contacts with a selected rRNA molecule. Processing is performed by the NeighborSearch module of Biopython on the fly upon selection an desired RNA chain in the given PDB complex. The list of proteins in contact with a given RNA molecule (the Protein Contact List) apprears in the lower part of the Main Naviagation panel after the processing is finished. All contacts within a cut off of 3.5 Å are reported. Thus, the LSU may contain a sub-set of rProteins from the SSU that are intersubunit bridges, and vice versa. The protein contacts are visualized in the 2D and 3D viewer applets upon clicking on the desired sub-set of protein in the Protein Contact List and submitting the selections. In addition, the 3D structures of the selected rProteins appear in the 3D applet - this step may be slow for large structures or structures with many proteins selected. A tool tip will display additional information (protein name and its chain in the given PDB) upon hovering the mouse on a highlighted nucleotide in the 2D applet.
Show modified nucleotides
Ribovision 2 offers visualization of modified nuclotides in a selected rRNA molecule. If a selected RNA chain contains modified nucleotides, the abbreviated modification types (e.g. 1MG, PSU, 5MU etc) will appear in the List of Modified Nuclotides beneath the Protein Contact List in the Main Navigation Pannel. The modified residues will be highlighted in the 2D and 3D applets upon selecting the desired modification type from the List of Modified Nuclotides. All nucleototides of a given modification type will be highlighted in the same color. Selection of multiple modification types will higlight modified nucleotides in distinct colors (per modification type). A tool tip will display additional information (modification name) upon hovering the mouse on a highlighted nucleotide in the 2D applet.
User upload data

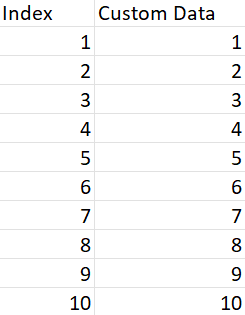

RiboVision 2 supports the visualization of user supplied data. Once an alignment and a structure have been selected, the option to upload custom data for mapping onto the selected structure for visualization in the 2D RNA topology and MolStar viewers becomes available in the Main Navigation Panel. The data should be supplied in a .csv (comma-separated values) file format. The first row of the csv file contains the headers for each column. An Index column should always be indicated. All other additional columns require a unique header definition. The Index column has the residue number to which the user-supplied data will be mapped. The rest of the columns have the data that will be mapped in the form of numerical values. Once a correct csv file has been uploaded, the selected structure will be colored in the 2D RN topology and MolStar viewers according to the values in the csv file when "Custom Data" is selected from the "Select Data" dropdown. Different columns in the csv file will appear as different Annotations in the Select Data dropdown menu at the bottom of the 2D RNA topology viewer.
DESIRE-API
ProteoVision uses an API service which provides data about rProtein nomenclature, sequences, alignments, and annotations. Furthermore, it provides data about species phylogeny. The API is available here.
